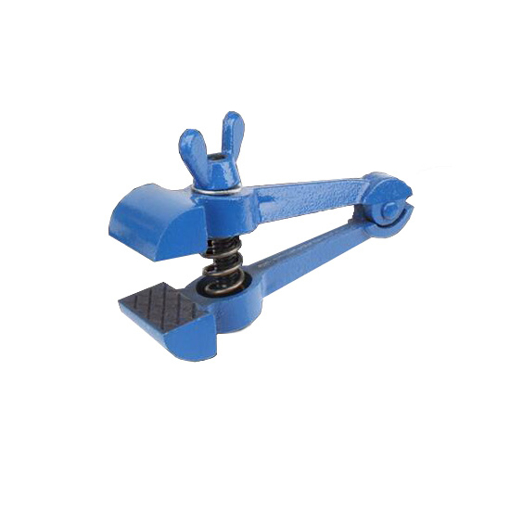

Hand Vice, 25mm/30mm

The hand vice is a hand held clamp tool that is used for clamp small-sized work pieces. It is available with jaw opening 25mm and 30mm, light weight and compact size. Ductile cast iron construction with heat treatment and surface spray treatment provides high strength and corrosion resistance, and the spring-loaded jaw with anti-slip desigh for secure holding, ideal for woodworking, workshop, home DIY, etc.

Specification

Note: The sizes are approximate.

Dimension Drawing

Tips: Hand vise structure

Hand vise or hand vice, is a hand-held tool specially designed for clamping small work pieces or thin slices for processing. For example, when filing a long and thin workpiece, you need first clamp the workpiece with a hand vise, and then place it on a bench vise for processing. It is also suitable for holding the workpiece for welding and drilling.

The hand vise has two unparallel clamping surfaces, forming the jaw. The two handles is connected together with a rivet. Between the two handles of vice is provided with a spring to enable the jaw open. A threaded rod passes through the spring and connectthe two handles, integrated with a wing nut to control the open and close of vice jaw.

The specification of hand vice is expressed by jaw length. Common specifications of hand vise are 25 mm, 40 mm, 50 mm, etc.
