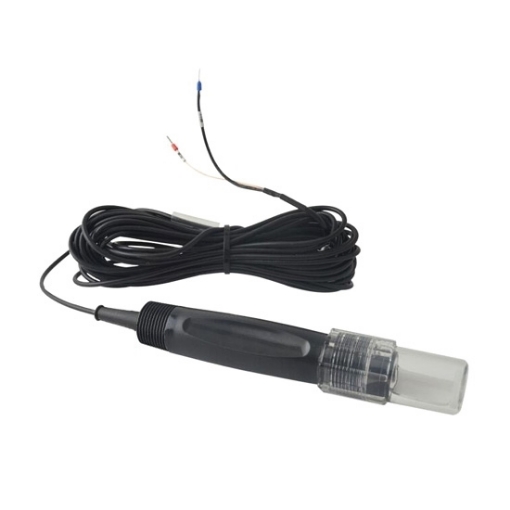

Flat pH Meter Electrode

The flat pH meter electrode measures pH from 0-14 with 0.02 accuracy, operates in temperatures from 0-60°C, and has internal temperature compensation. It’s made with a durable PPS/PC shell, installs via 3/4 NPT, and supports cable lengths up to 50m with signal transmission up to 60m. With a 6-month lifespan and high accuracy, it's ideal for use in food processing, industrial, and lab environments, especially in high temperature or extreme pH conditions.

Document

• pH Electrode Catalog

Feature

• Utilizes an aerogel electrode for easy maintenance.
• Features a flat glass bulb with excellent resistance to contamination and impact.
• Ensures high accuracy even in high temperatures or extreme pH conditions.
• Equipped with a high-quality, low-noise cable that supports long-distance signal transmission up to 60 meters.

The pH electrod installation methods:

1. Side wall installation (*The pH electrode must be at an angle of 15 degrees to the liquid surface. Otherwise, it will affect the normal use of the pH electrode.)
2. Flange mounted at the top
3. Pipe installation
4. Top installation
5. Submersible installation
6. Flow-through installation

Tips: What is a Flat pH Meter Electrode?

A Flat pH Meter Electrode is a specialized sensor designed for measuring the pH levels in liquids and semi-solids. Its flat glass bulb design allows for better resistance to contamination and impact, making it ideal for use in food processing, industrial, and laboratory applications.
