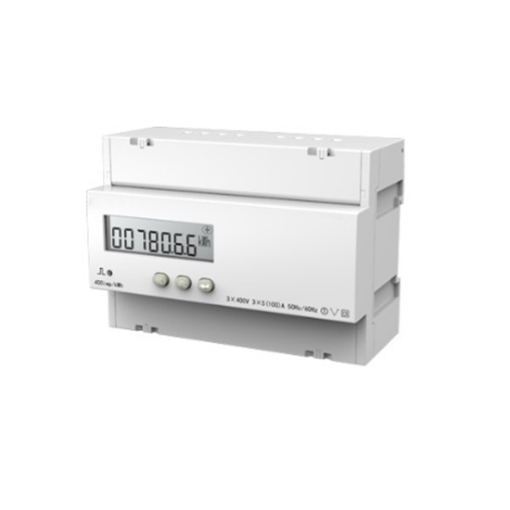

    Three Phase DIN Rail Digital Energy Meter, LCD Display

    Three Phase DIN Rail Digital Energy Meter, LCD Display

    0 review(s) | Add your review
    High-quality three-phase DIN rail digital energy meter for sale, with LCD digital display that simultaneously displays three-phase current or voltage values, capable of measuring positive active energy in energy measurement. The digital energy meter is 3 phase 3 wire, 35mm DIN rail installation, Modbus-RTU protocol communication RS485 port, and can be widely used indoors, outdoors, at home, school, market, industry, laboratory and other places.
    SKU: T-DEM-002
    $610.55
    i h
    Free shipping
    Delivery date: 6-12 days
    Overview

    The LCD backlight screen of the three-phase DIN rail digital energy meter can clearly display what content, the operation interface is simple and easy to use, and no adjustment is required for long-term use. The digital energy meter adopts a high-quality ABS shell, excellent flame retardant performance, easy wiring, and is widely used in rail transportation, smart switch cabinets, smart buildings, smart factories and energy management systems.

    Specification

    Model T-DSS1946
    Accuracy Grade Grade-1 accuracy for active energy
    Phase Three phase (3 wire)
    Rated Voltage 3x400V AC
    Current Input Direct input: 5(100)A / Via CT input: 1.5(6)A
    Frequency 50/60Hz
    Display Mode LCD display
    Display Digits 7
    Energy Pulse 1 active energy pulse output, pulse width (80±20%) ms
    Measurement Range Voltage/Current/Active power/Power factor/Frequency
    RS485 Communication Interface Modbus-RTU protocol, baud rate up to 9600bps
    IP Protection IP54 (panel) /IP20 (case)
    Certificate CE/ ISO/ MID
    Warranty Period 12 months
    Dimension 126*66*90mm
    Weight 2.5kg
    Installation Din rail 35mm
    Work Temperature -10℃~55℃
    Storage Temperature -25℃~70℃

    Dimension (unit=mm)

    Three phase digital energy meter LCD display dimension

    Wiring

    Three phase digital energy meter LCD display wiring

    Tips: Methods for reading three-phase energy meters

    • Directly read display data: Directly view the total power (unit: kWh) displayed on the LCD screen, usually in a cyclic display or switched by buttons. Common parameters include: total active power, phase power, voltage/current, power factor.
    • Remote reading of smart meters: Connect to the meter through a communication interface (such as RS485, infrared, 4G/NB-IoT), and use a protocol to read data.
