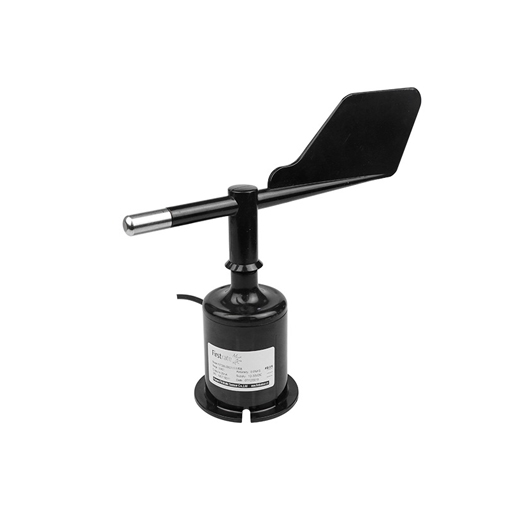

Wind Vane, Mechanical Wind Direction Meter

Choose this budget-friendly wind vane to complement your anemometer. With a low startup wind speed of ≤0.5 m/s and a wide 360° measurement range, it offers three selectable output modes. TooL's wind direction meter is the perfect companion for your home or on-the-go measurements.

SKU: T-A-BRW200-2002

Output Signal *

$95.87

Qty:

i h

Free shipping

Delivery date: 6-12 days

Overview
Reviews

Overview

Equipped with multi-level lightning protection and surge resistance, it stands up to the most extreme weather conditions. Choose from a variety of output modes including 4~20 mA, 0~5 V, and RS485 (compatible with DTU for wireless remote transmission) to meet the demands of different working scenarios.

Specification

Model	BRW200-2002
Operating Voltage	DC 12-30V
Output Signal	4~20 mA/RS485/0~5 V (optional)
Measurement Range	0~360°
Starting Wind Speed	≤0.5 m/s
Accuracy	±3°
Direction	8
Resolution	22.5°
Protection Level	IP65
Operating Humidity	0%~95% (non-condensing)

Integrated 3-Cup Anemometer Features

Integrated design that supports full 360° measurement.
Crafted from durable polycarbonate material, it’s age-resistant and corrosion-proof, making it ideal for high-altitude work and weather stations.
Featuring a fault-tolerant design for the sensor circuit protection, it allows for operator mishaps without damaging the circuitry.
The sensor base features a flanged installation structure for easy setup while ensuring a tight and secure connection.

Integrated 3-Cup Anemometer Dimension (unit:mm)

Applications

Tips: Is a wind vane anemometer?

No, a wind vane is not an anemometer. They are two distinct devices that are often used together in meteorological equipment to measure different aspects of wind.

Wind Vane: This device is used to indicate the direction from which the wind is coming. It typically has an arrow or pointer that aligns with the wind direction.
Anemometer: This device is used to measure the speed of the wind. It usually consists of rotating cups or a propeller that spins in the wind, with the speed of rotation corresponding to the wind speed.

While they are separate instruments, they are often integrated into a single unit called a weather vane or a wind sensor, which provides both wind speed and direction information.
