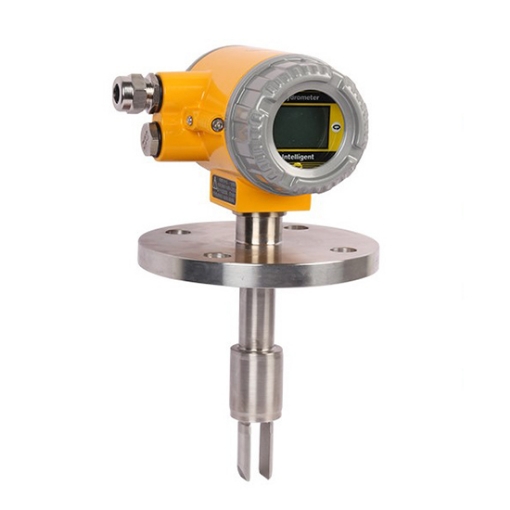

Tuning Fork Density Meter, LCD Display, 0 to 2.5g/cc

The tuning fork density meter for sale can measure liquid density online, is powered by 24V DC, has a measuring range of 0 to 2.5g/cc, an operating temperature range of -50℃ to +150℃, and can measure fluid viscosity from 0 to 2000cP, maintaining a measurement accuracy of ±0.5%, LCD display, and is used in various industries such as chemical, coal, electric power and metallurgy.

SKU: T-DM-LDM025

$2,964.00

Qty:

i h

Free shipping

Overview
Reviews

Overview

The tuning fork density meter provides a wide range of measurement from 0 to 2.5g/cc to meet specific industry needs. It uses an LCD display, the measurement data is intuitive and readable, and the stainless steel or aluminum shell protects the measuring tube and the drive detection device. The tuning fork density meter is equipped with a digital sensor and PT100 temperature compensation.

Feature

The transmitter uses an acoustic frequency signal source to excite the metal tuning fork.
The housing is made of stainless steel or aluminum to protect the measuring tube and the drive detection device.
The tuning fork vibrates freely at the center frequency, and the liquid can be measured by analyzing the frequency.
LCD large screen display, intelligent reading, measurement data is clear at a glance, intuitive and readable.
Optimized material, high corrosion resistance, greatly enhanced service life.

Specification

Model	T-LDM025
Measuring range	0-2.5g/cc (0-2500kg/m³)
Measuring accuracy	±0.5%
Operating temperature range	-50℃~+150℃
Maximum working pressure	4mpa
Fluid viscosity range	0-2000cP
Built-in temperature sensor	Digital sensor, PT100 temperature compensation
Liquid contact material	316L, 2205, 2507 stainless steel, etc.
Power supply	24V DC, ≥50mA
Display mode	LCD display

Product Details

Tuning fork density meter detail

Installation Method

Installation standard	T-shaped side opening, Plug-in installation	T-shaped side opening, Retracted installation
Note	The fork body part directly enters the main fluid	The fork body is retracted into the side opening of the pipe to avoid the main flow, and is retracted by 25mm
Flow speed	The flow speed through the fork is 0-1m/s	The flow speed in the main pipe is 1-5m/s
Viscosity range	Maximum 600cP	Maximum 100cP (can reach 250cP in individual cases)
Temperature	-50-150℃	-50-150℃
Main pipe size	≥ horizontal pipe 100mm (4’’) ≥Vertical pipe 150mm (4’’)	≥50mm (2’’)
Not suitable for	Unstable flow rate Main pipe diameter is less than DN100	Floc solution (such as pulp, etc.) Unstable flow rate. A solution with a gradient in viscosity The main pipe diameter is smaller than DN50 The temperature effect is significant

Tips: Notes on using a tuning fork density meter

Unlike pipeline density sensors, the fork body of the insertion type densitometer (concentrator) is not fully enclosed.

Pipe wall or container: The wall will produce boundary effects on the fluid plus the viscosity effect of the measured medium itself, which will have a certain impact on the measurement calibration of the sensor.
Installation positioning: In order to ensure that the density meter can measure accurately and display stably, the flow rate of the measured medium shall not be greater than 1m/s, and the diameter of the pipeline where the density meter is installed shall be greater than or equal to 159mm. The location where the density meter is installed should be as far away from the pump as possible, and the distance should preferably be greater than 5m; when the flow rate is greater than 1m/s, the expansion installation is adopted. For every increase of 1m in the flow rate, the diameter of the pipeline where the density meter is installed is expanded by 1.5 times. There must be a straight pipe section of > 600mm in front of the meter and a straight pipe section of > 300mm behind the meter to ensure that the fluid is in a laminar state when flowing through the fork body.
