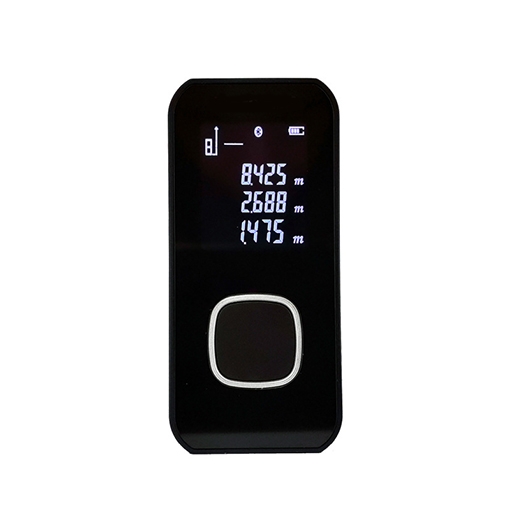

The mini laser distance meter integrates high-precision optical technology into a compact body and weighs as light as 65g, making it easy to carry. Its integrated mirror display clearly shows the connection status and is easy to operate. Measurement accuracy up to ± 2mm, support 40, 50, 60 meters three kinds of measurement distance. The meter with laser supports area, volume and perimeter measurements as well as Pythagorean theorem measurements, making it ideal for indoor and outdoor projects.
Specification
Model |
T-SW-24A |
T-SW-25A |
T-SW-26A |
Maximum Measurng Distance |
0.05-40m |
0.05m-50m |
0.05-60m |
Precision |
±(2mm+d*1/10000)* |
Continuous Measurement |
±90° |
MMetope Area Measurement |
Yes |
Area/Volume Measurement |
Yes |
Perimeter Measurement |
Yes |
Pythagorean Measurement |
Yes |
Min/Max Value |
Yes |
Laser Level |
Ⅱ |
Laser Type |
630-670nm, <1mW |
Automatically Cut off Laser |
20s (single measurement) |
Auto Power-off |
150s |
Battery |
3.7V 370mAh lithium battery |
Charging Specification |
DC5V 0.35A |
Full Charge Measurement Times |
3500 times for single measurement |
Storage Temperature |
-20℃~60℃ |
Working Temperature |
0℃~40℃ |
Storage Humidity |
20%-80%RH |
Dimension |
80*37*20mm |
Net Weight |
65g |
ATTENTION: "D" indicates the actual distance.
** In harsh environment, such as: strong sunlight, excessivelyfluctuated ambient temperature, weak reflection effect of theobject's surface and the low battery, a large error will occur inmeasurement results, so a reflecting plate is needed.
Mini Laser Distance Meter Document

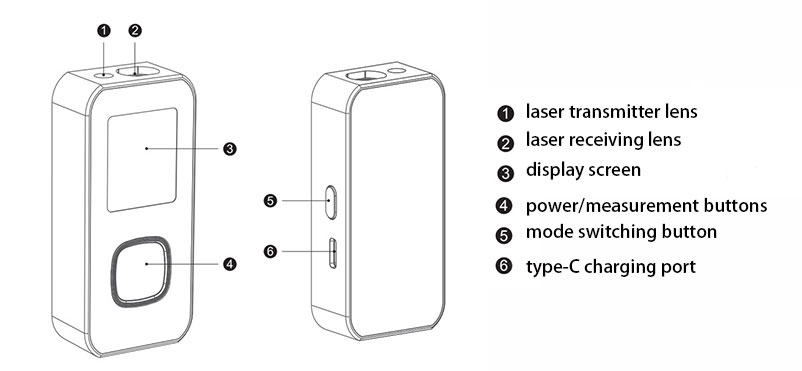

Mini Laser Distance Meter Details

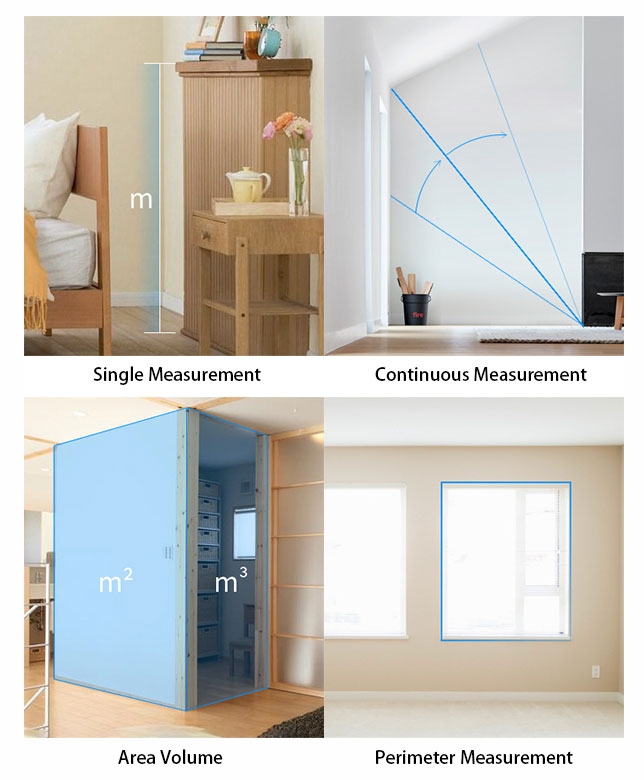

Mini Laser Distance Meter Multiple Measurement Methods
Tips: What is a mini laser distance meter and what scenarios is it suitable for?
Mini laser rangefinder is a portable and accurate measuring tool that utilizes laser technology to measure the distance between two points. It is usually compact and portable, and is widely used in interior decoration, property surveying, building construction and other scenarios where accurate distance measurement is required. It can provide measurement results quickly, replacing the traditional tape measure, and is particularly suitable for quick measurements when operated by a single person.
