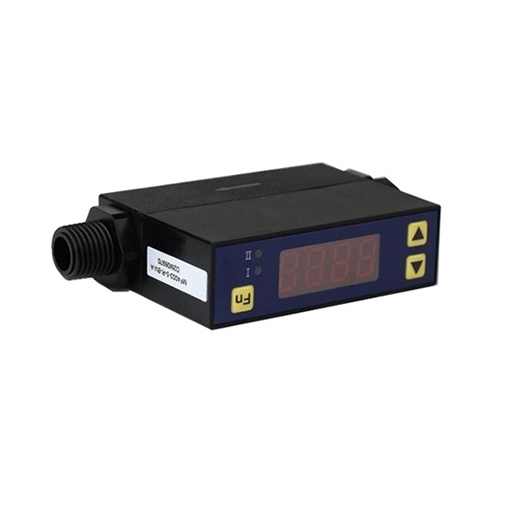

Mini Gas Mass Flow Meter, NO2/Air/O2/CO2, 0-2/20/50L/min

This mini gas mass flow meter adopts high precision sensor to ensure the accuracy of flow measurement, providing four flow ranges of 0-2L/min, 0-15L/min, 0-20L/min and 0-50L/min for selection, suitable for a wide range of gas detection, such as air, NO2, N2, O2, Ar, CO2, and the high repeatability ensures the stability and consistency, it is the preferred choice for purchasing flow meters.

SKU: T-FLOW-MGFM

Flow Range *
Gas *

$445.58

Qty:

i h

Free shipping

Delivery date: 6-12 days

Overview
Reviews

Overview

Accurate measurement, designed for accurate measurement of mini gas mass flow meter, suitable for Air, NO2, N2, O2, Ar, CO2 and other gases, the flow range can be selected from 02L/min, 015L/min, 020L/min, 050L/min, as a high-quality flowmeter, this style is compact, especially suitable for narrow space, suitable for DN3mm and DN8mm pipes.

Specification

Model	T-MF4003	T-MF4008
Flow Range *	0~2, 5 L/min	0~20, 50 L/min
DN	3mm	8mm
Gas *	Air, N2O, CO2, O2, N2, Ar. For other gases, please contact us.
Turn-down Ratio	100:1
Accuracy	±(1.5+0.2)% FS
Repeatibility	0.25%
Zero Drift	±30mV
Output Drift	±0.12%/℃
Response Time	10ms (default, 20, 50, 100, 200, 500, 1000 settable)
Power Supply	8-24V DC, 50mA
Signal Output *	Linear: Analog 1-5V DC (Standard); RS232, RS485 (Optional)
Display	4-digit 7-segment LED, 2 LED indicator
Display Unit	Instantaneous flow rate: SLPM, Flow accumulation: SL
Display Resolution	0.001, 0.01, 0.1 L/min settable	0.01, 0.1 L/min settable
Working Pressure	≤0.5MPa
Pressure Loss	≤100Pa	≤600Pa
Working Temperature	-10℃ ~ +55℃
Storage Temperature	-20℃ ~ +65℃
Humidity	<95%RH (no icing or condensation)
Keyboard	3 keys
Pin Out	5 Pins, NS-TECH CD R-5
Mechanical Connection	BST1/4 (R1/4)
Calibration	Air @20℃, 101.325kPa
Weight	75g

ATTENTION: For N2O and CO2, the T-MF4003 is available in 2 lpm, not 5 lpm; the T-MF4008 is available in 20 lpm, not 50 lpm.

Mass Flow Meter for Gas Document

Mini Gas Mass Flow Meter User Manual.pdf

Mini Gas Mass Flow Meter Dimension: (Unit: mm)

Gas mass flow meter dimension

Mini Gas Mass Flow Meter Details

Gas Mass Flow Meter Applications

Gas mass flow meter application

Tips: What industries can gas mass flow meters be used in?

Mass flow meters are widely used in industries such as petrochemical, natural gas, medical, food processing and environmental monitoring. It monitors gas flow in industrial processes to ensure high accuracy and reliability. Specific applications include fuel gas measurement, exhaust gas monitoring, compressed air system measurement, etc. It is especially suitable for application scenarios that require accurate gas proportioning or safety monitoring.
