6 inch PVC butterfly valve with pneumatic actuator for sale, comes with 150 flanged type port and UPVC disc. Our high performance air actuated butterfly valve can work at high temperature below 100 °C, which is a reliable air tool for flow control.
Specification
| Butterfly Valve |
Model |
T-PBV-150 |
| Media |
Water, Air, Gas, Oil, Liquid, etc. |
| Butterfly Valve Type |
PVC Type |
| Port Size |
6 inch (DN150, 150mm) |
| Body Material |
Cast Iron |
| Disc Material |
Stainless Steel (SS) |
| Seat Material |
EPDM |
| Working Temperature |
-10 °C to 120 °C |
| Pneumatic Actuator |
Model |
T-AT100D |
| Actuator Type |
Double Acting |
| Bore Size |
100mm |
| Air Pressure |
0.25 - 0.8MPa, PN16 |
| Pressure Difference |
0 - 1.0MPa |
| Air Supply Port |
1/4 inch |
| Actuator Material |
Aluminum Alloy |
Pneumatic Actuator Dimension
 |
 |
Q: Φ70/Φ102mm
A: 268mm
B: 120mm
C: 55mm
D: 65mm
E: 157mm
F: 125mm
G: 30mm
H: 80mm
I: PF
J: M6
K: 1/4"
O: 20mm
P: 40.5mm
S: 4mm
T: 4mm
U: 12mm
V: 24mm
W: 16mm
X: 32mm |

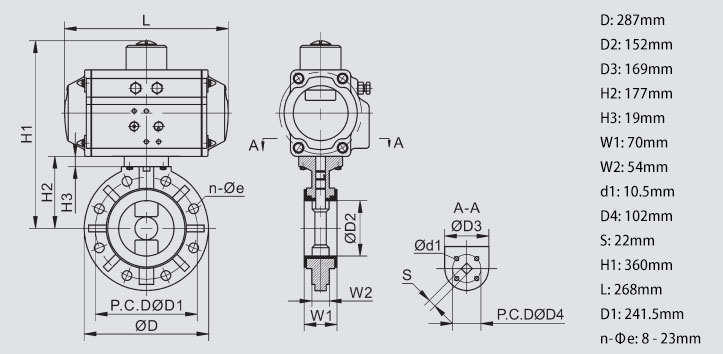

Body Dimension
| JIS |
ANSI |
DIN |
D |
D2 |
D3 |
H2 |
H3 |
W1 |
W2 |
d1 |
D4 |
S |
H |
L |
| D1 |
n-φe |
D1 |
n-φe |
D1 |
n-φe |
| 240 |
8-23 |
241.5 |
8-23 |
240 |
8-18 |
287 |
152 |
169 |
177 |
19 |
70 |
54 |
10.5 |
102 |
22 |
360 |
268 |
Tips: Why Choose Pneumatic PVC Butterfly Valve at Tool.com?
1. Pneumatic PVC butterfly valve has such advantages as simple structure, small volume, light weight, low material consumption, small installation size, and 90° reciprocating rotation small driving torque. It used to cut off, turn on and adjust the medium in the pipeline, which has good flow control and sealing performance.
2. Our air actuated butterfly valve can transport not only air, water and oil, but also the mud, leaving minimal fluid at the pipe opening. It can achieve good sealing and good adjustment performance under the low pressure.
3. The butterfly disc is designed for flow line, so that the fluid resistance loss is small. The pneumatic butterfly valve can be said to be an energy-saving product.
4. The stem of the pneumatic butterfly valve is the through rod structure that has a good comprehensive mechanical properties, corrosion resistance and abrasion resistance. When the pneumatic butterfly valve is opened and closed, the stem only rotates and does not move up and down, so the seal is reliable.
5. Pneumatic butterfly valve connection mode has flanged type connection, wafer type connection and lug type connection. And the body material has PVC, stainless steel and cast iron. Our air butterfly valve driven by a pneumatic actuator, which can realize remote control and automatic operation.
