3500 lbs 12v Electric Boat Trailer Winch

12V DC electric boat winch is designed for effortless loading and unloading of boats from trailers. This portable winch can easily haul boats and heavy vehicles up to 3500 lbs. Equipped with a 0.54hp (400W) motor and a wired remote control for convenient operation.
SKU: T-EBW-3500
$637.91
i h
Free shipping
Delivery date: 6-12 days
Overview

The 3500 lbs electric boat trailer winch provides powerful, reliable towing for boats and trailers. Its durable motor ensures smooth, efficient operation, while the easy-to-use remote control enhances convenience. Ideal for heavy-duty towing, this winch makes boat loading and unloading effortless.

Feature

  • Powerful 3500 lbs capacity for towing heavy boats with ease.
  • Electric operation for smooth and effortless winching.
  •  Durable construction ensures long-lasting performance in tough conditions.
  • Compact design for easy installation on various boat trailers.
  • Includes remote control for convenient and safe operation.

Specification

Model T-B3500LB
Single Line Rated Pull 3500 lbs (1588kgs)
Voltage 12V DC
Motor 0.54hp (400W)
Gearing Gear Gearshift
Drum Speed 1.2m/min
Drum Size (Dia x L) Ø25mm x 82mm
Wire Rope Ø4.8mm x 9.2m
Remote Switch Cable Length 3m (10 ft.)
Electric Cable Length 3m (10 ft.)
Pulley Block Optional
Overall Dimensions (L x W x H) 266.5 x 256.5 x 216.5mm
Packing Size 580 x 400 x 280mm
Protection Grade IP67
Gross Weight 24kg
Net Weight 22kg

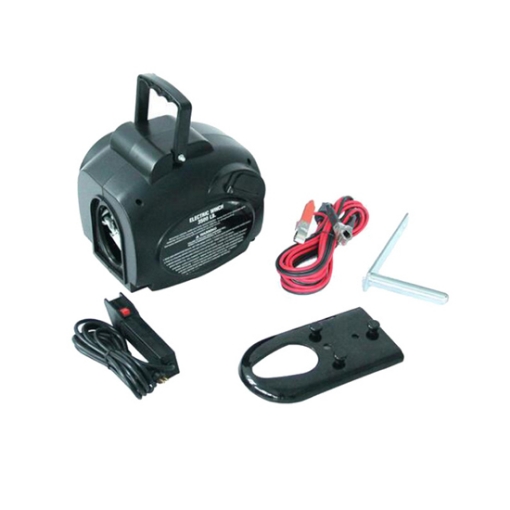

Package Included

1 1 x 3500 lbs Electric Boat Winch
2 1 x Clevis hook
3 1 x Wired remote controller
4 1 x Universal mounting plate
5 1 x Winch cable
6 1 x Set of bolts
7 1 x User manual

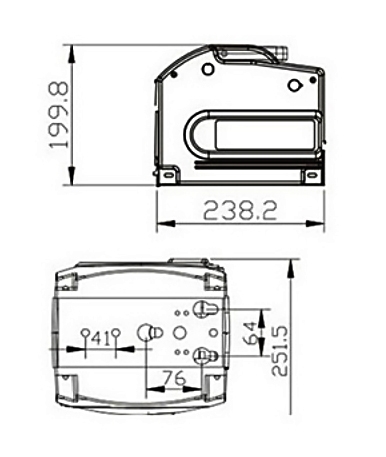

Dimensions (Unit: mm)

Tips: How to Maintain an Electric Boat Trailer Winch

  1. Regular Cleaning: After each use, especially in saltwater environments, clean your winch thoroughly with fresh water to remove any dirt, debris, or salt. This prevents corrosion and ensures smooth operation.
  2. Inspect the Cable: Frequently check the winch cable or strap for signs of wear, fraying, or damage. Replace it if necessary to prevent failure during operation.
  3. Lubricate Moving Parts: Apply a light coating of grease to moving parts, such as gears and spools, to reduce friction and prevent rust. Make sure to use a marine-grade lubricant for better protection.
  4. Battery Check: Ensure the winch’s power source is in good condition. Regularly inspect the battery connections for corrosion and clean them as needed.
  5. Store Properly: When not in use, cover your winch with a protective cover or store it in a dry, cool place to protect it from weather elements.
  6. Test Operation: Periodically test the winch’s motor and remote control to ensure everything is functioning properly before use.
