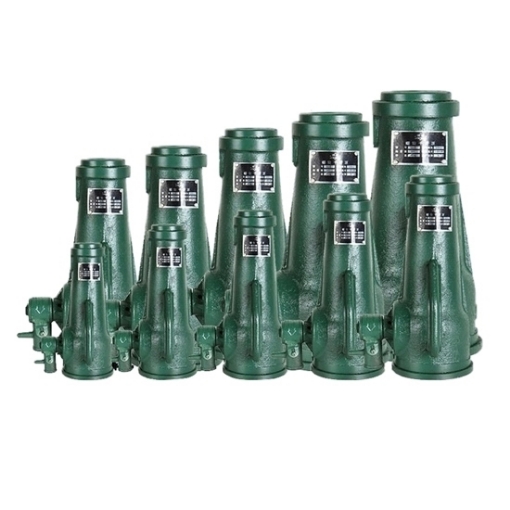

5 Ton Manual Screw Jack

Find a low cost adjustable screw jack at Tool.com. This 5 ton manual screw jack, with a minimum height of 250mm and a lifting height of 130mm, offers a reliable and efficient solution for lifting heavy loads.

Specifications

• Model: T-HT8432-5T
• Capacity (Load): 5 ton
• Jack Length: 250mm
• Total Length: 380mm
• Minimum Altitude: 250mm
• Lifting Height: 130mm
• Weight: 5.7kg

Features

• Structural stability: The integrated body design enhances the overall strength and improves the stability and safety in the process of use.
• Jacking limit: The red line on the screw is the maximum jacking height indicator line, it is strictly prohibited to continue operation beyond this position to avoid danger.
• Anti-corrosion process: The surface of the multi-layer primer is treated by high-temperature baking, with good anti-corrosion properties, making it easy to paint, rust, and extending the service life.
• Scope of application: This manual screw jack does not apply to automobile jacking operations, please choose the use of reasonable scenarios according to the type of equipment load.
• Operation specification: Overloading is strictly prohibited; the threaded parts should be kept clean before and after use and lubricated regularly to ensure smooth operation.
• Restrictions on use: This product is only used for short-term jacking, not a substitute for support tools, and shall not be used for long-term load-bearing static use.

Details

Use Methods

Tips for Using a Screw Jack

1. Before use, it should check whether the parts are intact, make sure that the screw, nut, rocker, etc. are not damaged or stuck, and add lubricant to reduce wear and tear and guarantee smooth lifting and lowering.

2. The jack should be placed vertically on the solid and flat ground, shaking evenly during operation, and impact is strictly prohibited. Before lowering, it must be ensured that the weight has auxiliary support, and the operation should be slow and smooth to prevent slipping.

3. It is strictly prohibited to use it beyond the rated load, and the jacking height shall not exceed the warning line or two-thirds of the total length of the screw to prevent the accident of dislodging.

4. When multiple units are used at the same time, synchronization should be maintained to avoid tilting of heavy loads. Regularly clean, inspect, and store in a dry place after use to prevent rust and corrosion.

5. The use of self-lowering jacks needs to confirm the status of the brake, and pay attention to the protection of the operation to avoid the rapid fall caused by personal or equipment damage.

6. Butter shall be used for lubrication during storage to prevent excessive wear and reduce service life.

Applications

A manual screw jack, also referred to as a mechanical screw jack, is a device designed to lift heavy loads vertically by converting rotational motion into linear motion. It is commonly used in various applications that require lifting heavy loads, including building support, bridge construction, and material handling.

Tips: Advantages of Manual Screw Jacks

Manual screw jacks, also referred to as mechanical screw jacks or machine screw jacks, offer several benefits compared to other lifting mechanisms:

• High Load Capacity: Screw jacks are capable of supporting extremely heavy loads due to their robust design and capacity to handle substantial weight.
• Precise Positioning: With their screw thread mechanism, screw jacks allow for precise load adjustments, enabling fine-tuned positioning with ease.
• High Efficiency: Thanks to the mechanical advantage provided by the screw thread, screw jacks efficiently lift heavy loads with minimal effort.
• Safety: Compared to hydraulic jacks, screw jacks are safer as they don't rely on hydraulic fluid, eliminating the risk of hazardous leaks.
• Durability: Designed for long-lasting use, screw jacks can withstand continuous operation, even in challenging environments.
• Versatility: Screw jacks are adaptable to various applications, including industrial machinery, construction equipment, and material handling systems.
• Easy Maintenance: With minimal maintenance required, screw jacks help reduce downtime and improve overall productivity.
